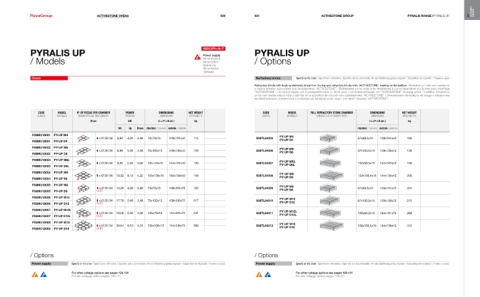

ACTIVESTONE OVENS 030 031 ACTIVESTONE GROUP PYRALIS RANGE / PYRALIS UP 01

PYRALIS UP 400V/3Ph+N+T PYRALIS UP
Power supply
/ Models Alimentazione / Options
Alimentation
Spannung
Alimentación
Питание
Ovens
Ovens Refractory bricks Specify on the order / Specificare nell’ordine / Specifier sur la commande / An der Bestellung genau angeben / Especificar en el pedido / Уточнить в заказе
Refractory bricks with heating elements at sight on the top and refractory bricks with "ACTIVESTONE" heating on the bottom / Refrattari sul cielo con resistenze
a vista e refrattari sulla platea con riscaldamento “ACTIVESTONE” / Réfractaires sur la voûte avec résistances à vue et réfractaires sur la sole avec chauffage
“ACTIVESTONE" / Schamottziegeln mit Heizungselementen in Sicht oben und Schamottziegeln mit “ACTIVESTONE” Heizung unten / Ladrillos refractarios
arriba con resistencias a vista y ladrillos en la superficie de cocción con calentamiento “ACTIVESTONE” / Огнеупорные материалы на своде с открытыми
нагревательными элементами и огнеупорные материалы на поде с системой нагрева “ACTIVESTONE”.

CODE MODEL N° OF PIZZAS PER CHAMBER POWER DIMENSIONS NET WEIGHT CODE MODEL FULL REFRACTORY STONE CHAMBER DIMENSIONS NET WEIGHT
CODICE MODELLO NUMERO PIZZE PER CAMERA POTENZA DIMENSIONI PESO NETTO CODICE MODELLO CAMERA TUTTO REFRATTARIO DIMENSIONI PESO NETTO
Ø cm kW ( L x P x H cm ) kg ( L x P x H cm ) kg

Tot. Up Down chamber / camera outside / esterne chamber / camera outside / esterne
P08MU10001 PY-UP M4
4 x Ø 30 / 34 6,60 4,20 2,40 70x70x15 109x101x40 115 S08TL64005 PY-UP M4 67x68,5x15 109x101x40 136
P08MU12001 PY-UP D4 PY-UP D4

P08MU10002 PY-UP M6 PY-UP M6
6 x Ø 30 / 34 8,88 5,40 3,48 70x105x15 109x136x40 129 S08TL64006 67x103,5x15 109x136x40 158
P08MU12002 PY-UP D6 PY-UP D6
P08MU10003 PY-UP M6L PY-UP M6L
6 x Ø 30 / 34 9,00 5,40 3,60 105 x70x15 144x101x40 139 S08TL64007 102x68,5x15 144x101x40 168
P08MU12003 PY-UP D6L PY-UP D6L
P08MU10004 PY-UP M9 PY-UP M9
9 x Ø 30 / 34 13,32 8,10 5,22 105x105x15 144x136x40 159 S08TL64008 102x103,5x15 144x136x40 200
P08MU12004 PY-UP D9 PY-UP D9
P08MU10005 PY-UP M8 PY-UP M8
4 x Ø 30 / 34 13,20 4,20 2,40 70x70x15 109x101x72 183 S08TL64009 67x68,5x15 109x101x72 225
P08MU12005 PY-UP D8 ( x 2 ) PY-UP D8
P08MU10006 PY-UP M12 PY-UP M12
6 x Ø 30 / 34 17,76 5,40 3,48 70x105x15 109x136x72 217 S08TL64010 67x103,5x15 109x136x72 275
P08MU12006 PY-UP D12 ( x 2 ) PY-UP D12
P08MU10007 PY-UP M12L PY-UP M12L
6 x Ø 30 / 34 18,00 5,40 3,60 105x70x15 144x101x72 231 S08TL64011 102x68,5x15 144x101x72 289
P08MU12007 PY-UP D12L ( x 2 ) PY-UP D12L
P08MU10008 PY-UP M18 PY-UP M18
9 x Ø 30 / 34 26,64 8,10 5,22 105x105x15 144x136x72 290 S08TL64012 102x103,5x15 144x136x72 372
P08MU12008 PY-UP D18 ( x 2 ) PY-UP D18

/ Options / Options

Power supply Specify on the order / Specificare nell’ordine / Specifier sur la commande / An der Bestellung genau angeben / Especificar en el pedido / Уточнить в заказе Power supply Specify on the order / Specificare nell’ordine / Specifier sur la commande / An der Bestellung genau angeben / Especificar en el pedido / Уточнить в заказе

For other voltage options see pages 120-121 For other voltage options see pages 120-121
Per altri voltaggi vedere pagine 120-121 Per altri voltaggi vedere pagine 120-121
