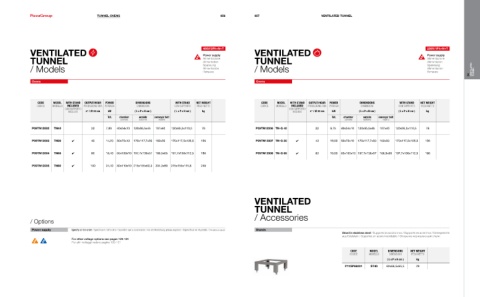

Page 28 - Pizzaöfen

TUNNEL OVENS 056 057 VENTILATED TUNNEL

VENTILATED 400V/3Ph+N+T VENTILATED 230V/1Ph+N+T
Power supply
Power supply
TUNNEL Alimentazione TUNNEL Alimentazione
Alimentation
Alimentation
/ Models Spannung / Models Spannung VENTILATED
Alimentación
Alimentación
Питание
Питание
04 TUNNEL
Ovens Ovens

CODE MODEL WITH STAND OUTPUT/HOUR POWER DIMENSIONS WITH STAND NET WEIGHT CODE MODEL WITH STAND OUTPUT/HOUR POWER DIMENSIONS WITH STAND NET WEIGHT
CODICE MODELLO INCLUDED PRODUZIONE ORA POTENZA DIMENSIONI CON SUPPORTO PESO NETTO CODICE MODELLO INCLUDED PRODUZIONE ORA POTENZA DIMENSIONI CON SUPPORTO PESO NETTO
CON SUPPORTO CON SUPPORTO
INCLUSO n° / Ø 33 cm kW ( L x P x H cm ) ( L x P x H cm ) kg INCLUSO n° / Ø 33 cm kW ( L x P x H cm ) ( L x P x H cm ) kg
Tot. chamber outside conveyor belt Tot. chamber outside conveyor belt
camera esterne nastro camera esterne nastro

P09TN12002 TN40 22 7,80 40x54x10 120x95,5x45 107x40 120x95,5x110,5 76 P09TN12006 TN-G 40 22 9,75 40x54x10 120x95,5x45 107x40 120x95,5x110,5 76

P09TN12003 TN50 ✔ 40 14,20 50x75x10 170x117,7x50 160x50 170x117,5x105,5 156 P09TN12007 TN-G 50 ✔ 40 19,50 50x75x10 170x117,7x50 160x50 170x117,5x105,5 156

P09TN12004 TN65 ✔ 80 18,40 65x100x10 197,7x136x57 186,5x65 197,7x136x112,5 186 P09TN12008 TN-G 65 ✔ 80 19,50 65x100x10 197,7x136x57 186,5x65 197,7x136x112,5 186

P09TN12005 TN80 ✔ 100 24,40 80x110x10 215x155x60,3 204,3x80 215x155x115,8 249

VENTILATED

TUNNEL

/ Accessories
/ Options

Power supply Specify on the order / Specificare nell’ordine / Specifier sur la commande / An der Bestellung genau angeben / Especificar en el pedido / Уточнить в заказе Stands
Stand in stainless steel / Supporto in acciaio inox / Supports en acier inox / Untergestelle
aus Edelstahl / Soportes en acero inoxidable / Опоры из нержавеющей стали.
For other voltage options see pages 120-121
Per altri voltaggi vedere pagine 120-121

CODE MODEL DIMENSIONS NET WEIGHT
CODICE MODELLO DIMENSIONI PESO NETTO
( L x P x H cm ) kg
P11SP66001 ST40 60x86,5x65,5 29
