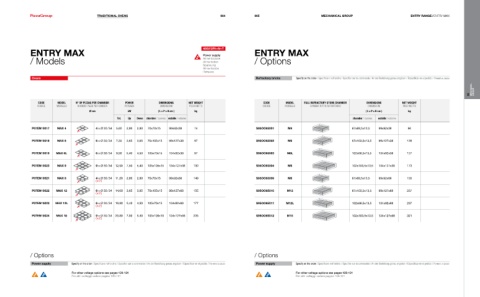

TRADITIONAL OVENS 064 065 MECHANICAL GROUP ENTRY RANGE / ENTRY MAX

ENTRY MAX 400V/3Ph+N+T ENTRY MAX
Power supply
/ Models Alimentazione / Options
Alimentation
Spannung
Alimentación
Питание
Ovens Refractory bricks Specify on the order / Specificare nell’ordine / Specifier sur la commande / An der Bestellung genau angeben / Especificar en el pedido / Уточнить в заказе
Ovens
MECHANIC. GROUP

05
CODE MODEL N° OF PIZZAS PER CHAMBER POWER DIMENSIONS NET WEIGHT CODE MODEL FULL REFRACTORY STONE CHAMBER DIMENSIONS NET WEIGHT
CODICE MODELLO NUMERO PIZZE PER CAMERA POTENZA DIMENSIONI PESO NETTO CODICE MODELLO CAMERA TUTTO REFRATTARIO DIMENSIONI PESO NETTO
Ø cm kW ( L x P x H cm ) kg ( L x P x H cm ) kg

Tot. Up Down chamber / camera outside / esterne chamber / camera outside / esterne

P07EN10017 MAX 4 4 x Ø 30 / 34 5,60 2,80 2,80 70x70x15 99x92x38 74 S95OO65001 M4 67x68,5x13,5 99x92x38 96

P07EN10018 MAX 6 6 x Ø 30 / 34 7,30 3,65 3,65 70x105x15 99x127x38 97 S95OO65002 M6 67x103,5x13,5 99x127x38 128

P07EN10019 MAX 6L 6 x Ø 30 / 34 9,90 5,40 4,50 105x70x15 134x92x38 97 S95OO65003 M6L 102x68,5x13,5 134x92x38 127

P07EN10020 MAX 9 9 x Ø 30 / 34 12,90 7,50 5,40 105x105x15 134x127x38 130 S95OO65004 M9 102x103,5x13,5 134x127x38 173

P07EN10021 MAX 8 4 x Ø 30 / 34 11,20 2,80 2,80 70x70x15 99x92x68 149 S95OO65009 M8 67x68,5x13,5 99x92x68 193
( x 2 )

P07EN10022 MAX 12 6 x Ø 30 / 34 14,60 3,65 3,65 70x105x15 99x127x68 155 S95OO65010 M12 67x103,5x13,5 99x127x68 237
( x 2 )

P07EN10023 MAX 12L 6 x Ø 30 / 34 19,80 5,40 4,50 105x70x15 134x92x68 177 S95OO65011 M12L 102x68,5x13,5 134x92x68 237
( x 2 )

P07EN10024 MAX 18 9 x Ø 30 / 34 25,80 7,50 5,40 105x105x15 134x127x68 235 S95OO65012 M18 102x103,5x13,5 134x127x68 321
( x 2 )

/ Options / Options

Power supply Specify on the order / Specificare nell’ordine / Specifier sur la commande / An der Bestellung genau angeben / Especificar en el pedido / Уточнить в заказе Power supply Specify on the order / Specificare nell’ordine / Specifier sur la commande / An der Bestellung genau angeben / Especificar en el pedido / Уточнить в заказе

For other voltage options see pages 120-121 For other voltage options see pages 120-121
Per altri voltaggi vedere pagine 120-121 Per altri voltaggi vedere pagine 120-121
